24H Dashcam Hardwire Kit

Features:
- Reverse connection protection
- Short circuit protection
- Overload protection
- Overheating protection
- Total Cable Length: 3.5 Meters (input 0.8 meter, output 2.7 meters)
- Output Connector: Mini USB plug, DC 5V, 2.5A
- Working temperature: -20℃ to 90℃

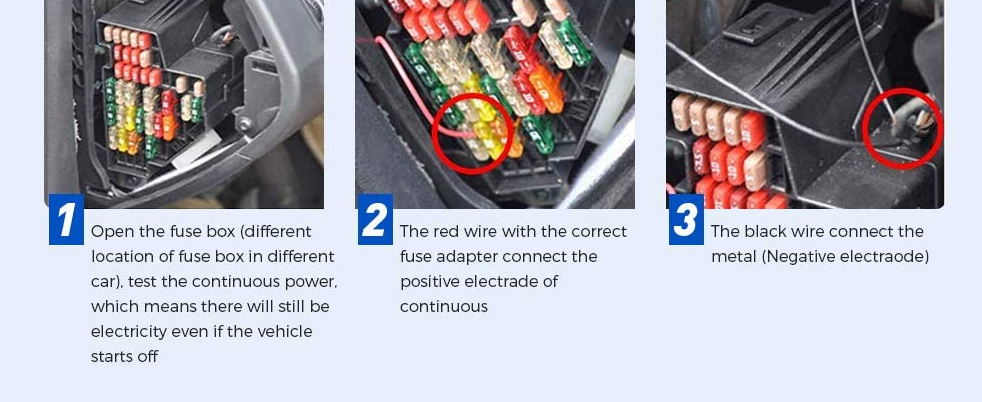

Within this kit there are 3 wires that need to be connected:

A RED wire (BAT+), needs to connect with a constant fuse, which can provide power to dash cam even when the vehicle is off.

A YELLOW wire (ACC), needs to connect with Fuse Box ACC, which can make the dash cam power on when the vehicle is on.

A BLACK wire (GND), needs to connect with a metal bolt or screw.

Four Options for Low Voltage Protection:

• For 12V Battery: 11.8V 12.0V 12.2V 12.4V
• For 24V Battery: 23.6V 24.0V 24.4V 24.8V
